KX018-4
COMPACT EXCAVATORS
MSRP AS LOW AS
$36,697.00

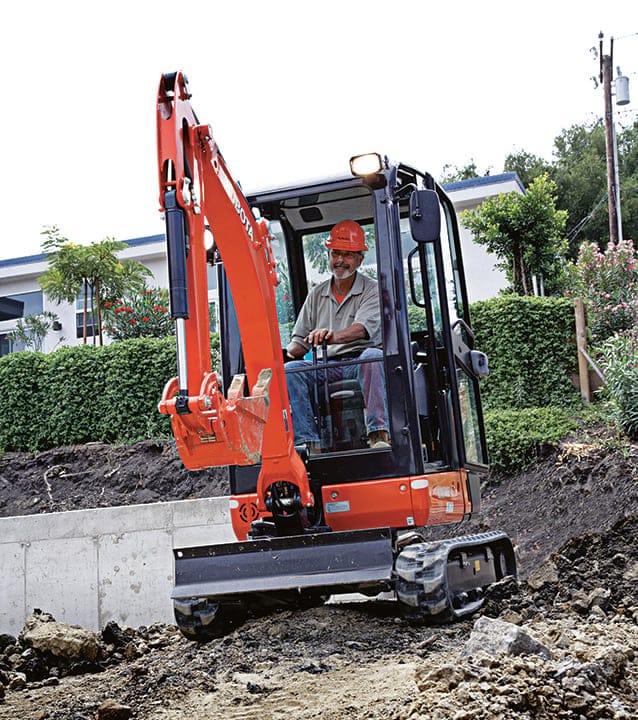

Digging has never been easier than with the Kubota KX018-4 compact excavator. Combine the KX018-4’s 16.1 horsepower with superior maneuverability and versatility, and you’ll never worry about whether or not you can get the job done. Dig to your heart’s desire and do it comfortably, in the KX018-4’s spacious optional cab. There’s never been a better way to move ground. Kubota is the world’s #1 selling compact excavator for 20 years.*
*According to 2023 data from Off-Highway Research including all Kubota Group brand sales.
Special Offers
Stand Alone Financing Installment Program
Implement Stand Alone Financing
Customer instant rebate for Farmer Veteran Coalition members.
Farmer Veteran Coalition Rebate
*Not Available for National Accounts or Government Customers
LOW-RATE RENTAL BUSINESSES*
$0 Down, 0% A.P.R. for up to 60 Months or Save up to $6,000 on Construction Equipment!
Construction
Save up to $6,000 or pay 0% A.P.R. for up to 60 Months with 0% Down on KX AND U SERIES!
EXCAVATORS
Specifications
Arm Breakout Force, Lbs (kgf)
Auxiliary Hydraulics Flow Rate, G P M ( L P M)
Blade Height, In (mm)
Blade Width, Ft (mm)
Bucket Breakout Force, Lbs (kgf)
Crawler Length, Ft (mm)
Displacement (cu. In.)
Engine Model
Fuel Reservoir, Gal (l)
Ground Contact Pressure Psi, Kgf (cm2)
Horsepower (gross)
Hydraulic Oil Reservoir / System, Gal (l)
Min. Ground Clearance, In (mm)
Operating Weight, Lbs (kg)
Overall Height, Ft (mm)
Overall Length, Ft (mm)
Overall Width, Ft (mm)
Pump Capacity, G P M ( L P M)
Traveling Speed: High, Mph (kph)
Traveling Speed: Low, Mph (kph)
Arm Breakout Force, Lbs (kgf)
1852 (840)
Auxiliary Hydraulics Flow Rate, G P M ( L P M)
7.4 (27.7)
Blade Height, In (mm)
9.1in (230)
Blade Width, Ft (mm)
4ft 3.2in (1300) / 3ft 3.0in (990)
Bucket Breakout Force, Lbs (kgf)
3594 (1630)
Crawler Length, Ft (mm)
5ft 2.6in (1590)
Displacement (cu. In.)
54.80
Engine Model
Kubota D902-BH-E4
Fuel Reservoir, Gal (l)
5.6 (21)
Ground Contact Pressure Psi, Kgf (cm2)
3.7 (0.26) / 3.8 (0.27)
Horsepower (gross)
16.1
Hydraulic Oil Reservoir / System, Gal (l)
4.1 (15.5) / 7.4 (28)
Min. Ground Clearance, In (mm)
6.3in (160)
Operating Weight, Lbs (kg)
3748 (1700) / 3968 (1800)
Overall Height, Ft (mm)
7ft 7.7in (2330) / 7ft 8.5in (2350)
Overall Length, Ft (mm)
12ft 2.1in (3710)
Overall Width, Ft (mm)
4ft 3.2in (1300) / 3ft 3.0in (990)
Pump Capacity, G P M ( L P M)
4.6 (17.3) × 2 / 2.8 (10.4) × 1 / 1.7 (6.2) × 1
Traveling Speed: High, Mph (kph)
1.4 (2.2)
Traveling Speed: Low, Mph (kph)
2.5 (4.0)
